Detailed Description

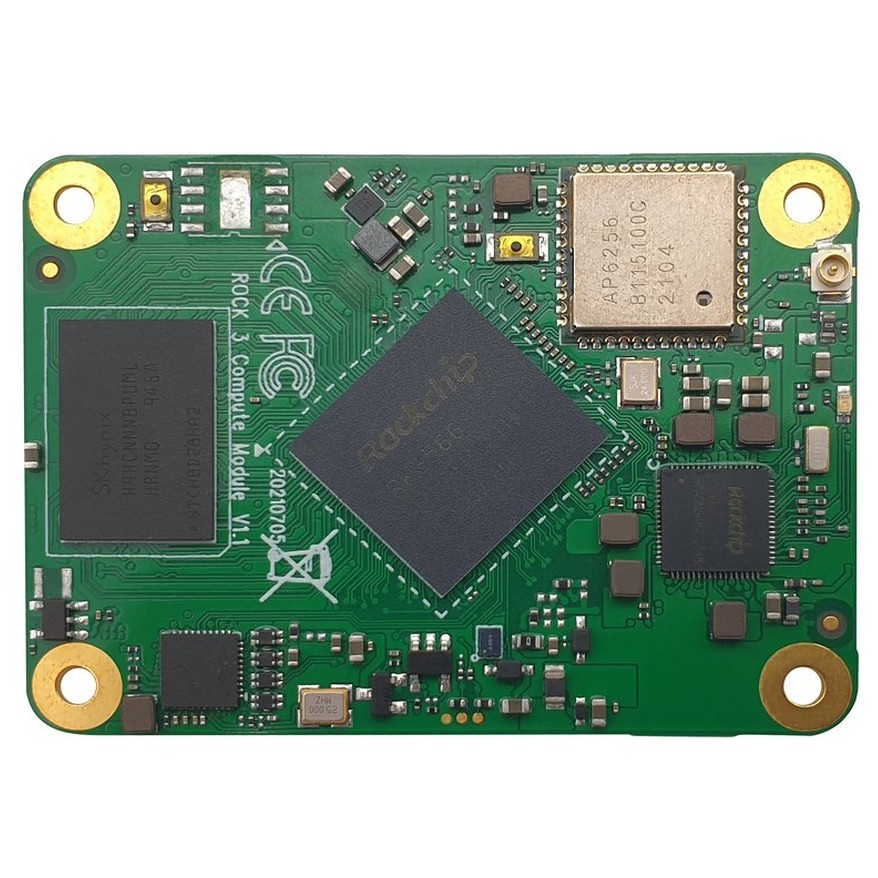

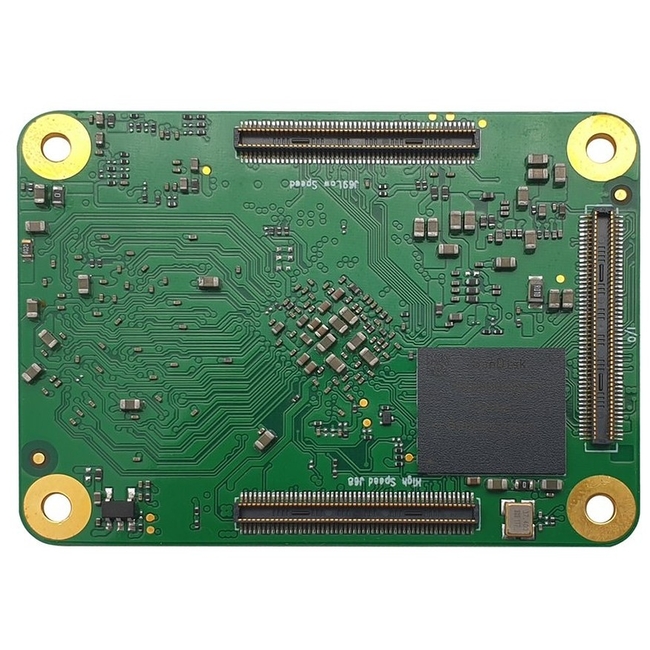

The ALLNET Radxa CM3 Model A Rock3 RK3566 Compute Module is a powerful System on Module (SoM) designed for various applications, particularly in the Internet of Things (IoT) field. This module is based on the Rockchip RK3566 SoC, a 64-bit quad-core Cortex-A55 processor that operates at up to 1.8 GHz.
Key Features:
- Processor: Powered by the Rockchip RK3566 SoC with a quad-core Cortex-A55 processor running at up to 1.8 GHz.
- Memory: Comes with 4 GB of LPDDR4 RAM, supporting up to 8 GB in other variants.
- Storage: Includes 32 GB of internal EMMC storage.
- Connectivity: Supports Bluetooth 5.0 and optional wireless LAN (2.4GHz & 5.0GHz IEEE 802.11b/g/n/ac).
The module offers a variety of interfaces including USB, PCIe, and GPIO support, ensuring versatility. It supports dual display output with a resolution of up to 4K x 2K. The compact design with dimensions of 55 mm x 40 mm makes it ideal for space-constrained applications.
Applications: This module is widely used in applications such as IoT gateways, industrial control, and medical equipment.
Specifications
-
Processor
- Rockchip RK3566 SoC
-
Cores
- 4 x Cortex-A55
-
Processor Frequency
- Up to 1.8 GHz
-
RAM
- 4 GB LPDDR4 (up to 8 GB in other variants)
-
Storage
- 32 GB EMMC
-
Bluetooth
- 5.0
-
Wireless LAN
- IEEE 802.11b/g/n/ac (2.4GHz & 5.0GHz)
-
Ethernet
- Gigabit Ethernet PHY
-
USB Ports
- 2 x USB 2.0, 1 x USB 3.0
-
PCIe
- 1-lane Host, Gen 2 (5Gbps)
-
SATA Ports
- 2 (one shared with USB 3 and one shared with PCIe)
-
GPIO
- 50 pins
-
Interfaces
- I2C, SPI, UART, ADC, PWM, HDMI, eDP, MIPI, DP, I2S
-
Display Output
- Supports dual display output up to 4K x 2K
-
Dimensions
- 55 mm x 40 mm
-
Power Supply
- 5V DC
