Sku: 1117503820

Κάρτα Δικτύου Lenovo Tp Quectel Em160R-Gl 4G Lte-A

190,10 €

Up to 36 instalments by credit card x 5,94€ / month

...More

Product Availability

Need help?

Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.

Call us now!

Shop now

Methods of Pickup/Shipment

Pickup from the store:

El. Ave. Venizelou 73 (formerly Theseos), Kallithea
Pick up from a BoxNow machine:

With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
Shipping to your location (Calculate shipping):
Ο κωδικός ΤΚ που πληκτρολογήσατε δεν ισχύει

Detailed Description

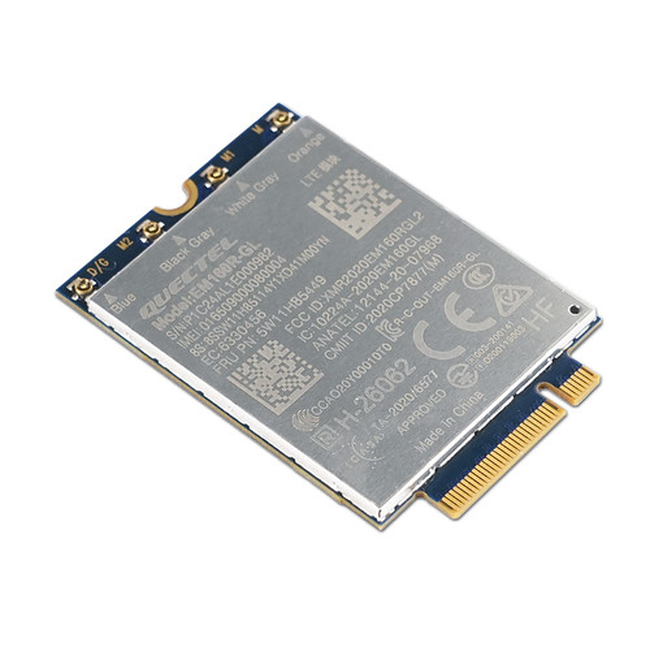

The TP Quectel EM160R-GL 4G LTE-A module is crafted for high-performance LTE Advanced applications, providing remarkable features for global markets.

Key Technical Specifications:

Form Factor and Dimensions: M.2 form factor, 42.0 ? 30.0 ? 2.3mm.
Speed and Performance: Supports maximum downlink speed of 1.0 Gbps and uplink speed of 150 Mbps.
Frequency Bands: Extensive frequency band support including LTE-FDD and LTE-TDD.
Carrier Aggregation: Up to 3 ? CA capabilities.
GNSS Support: Integrated Qualcomm IZat for accurate positioning.

Additional Features:

Power Consumption: Optimized for various modes with minimal power usage.

Software Compatibility: Compatible across numerous operating systems, enhancing versatility.

Applications: Ideal for industrial routers, home gateways, and digital signage.

Form Factor
- M.2
Dimensions
- 42.0 ? 30.0 ? 2.3 mm
Max Downlink Speed
- 1.0 Gbps
Max Uplink Speed
- 150 Mbps
Frequency Bands
- LTE-FDD (B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66), LTE-TDD (B38/B39/B40/B41/B42/B43/B44/B48)
Carrier Aggregation
- up to 3 ? CA
WCDMA Bands
- B1/B2/B3/B4/B5/B6/B8/B19
GNSS Support
- GPS, GLONASS, BeiDou, Compass, Galileo
TCP/UDP Support
- Yes
USB Interface
- 2.0/3.0
Power Down (USB Mode)
- 66 μA
Power Down (PCIe Only Mode)
- 66 μA
Sleep (USB Mode)
- 1.78 mA
Idle (USB Mode)
- 24.75 mA
Sleep (PCIe Only Mode)
- 2.38 mA
Idle (PCIe Only Mode)
- 15.38 mA
