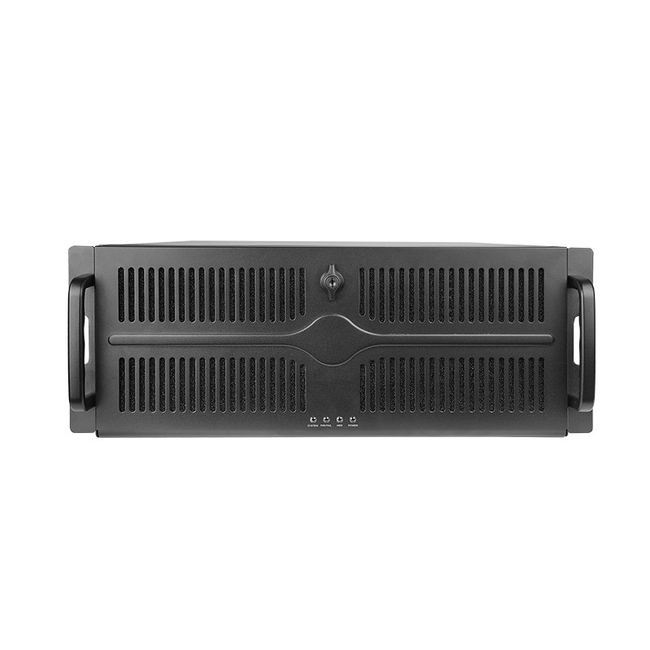

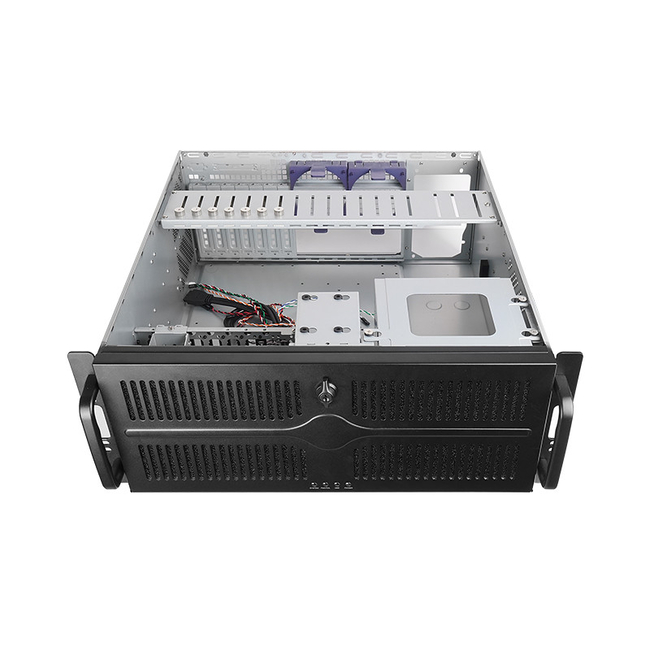

The Chieftec UNC-409S-B-OP is a compact 4U ATX rackmount case designed to provide a robust and flexible solution for installing industrial rackmount computers in a 19" rack.

This case is engineered to accommodate both Micro-ATX (mATX) and ATX motherboards, making it versatile for various applications, including servers and media centers.

Design and Build Quality

The UNC-409S-B-OP features a solid build quality with 1.2mm thick SECC (Cold Rolled Steel) material, ensuring excellent protection for the hardware. Its compact design has a depth of only 482mm, making it ideal for installations where space is limited. The case is available in black and is designed to be both reliable and durable.

Technical Specifications

• Dimensions: 482mm (Depth) x 480mm (Width) x 177.5mm (Height)
• Weight: 10.57 kg (without packaging), 12.21 kg (with packaging)
• Motherboard Support: Compatible with mATX and ATX
• Drive Bays: 3 external 5.25" drive bays, 1 external 3.5" drive bay, 2 internal 3.5" slots, 3 internal 2.5" slots
• Power Supply: Standard ATX or optional 1+1 redundant power supplies
• Front I/O: 2 fast USB 3.0 ports
• Cooling: 2 front 120mm fan slots, 2 rear 80mm fan slots
• Expansion Slots: 7 slots for PCI cards
• CPU Cooler Compatibility: Up to 140mm height
• VGA Card Compatibility: Up to 330mm length

Additional Features

• Dust Filter: Washable dust filter included
• Front Handles: Two removable front handles
• Material: 1.2mm thick SECC steel
• Color: Black

The Chieftec UNC-409S-B-OP is a compact, reliable, and flexible 4U ATX rackmount case designed for industrial applications.
