Καλώδιο Δικτύου RJ45 0.50m White Cat5e SF/UTP
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

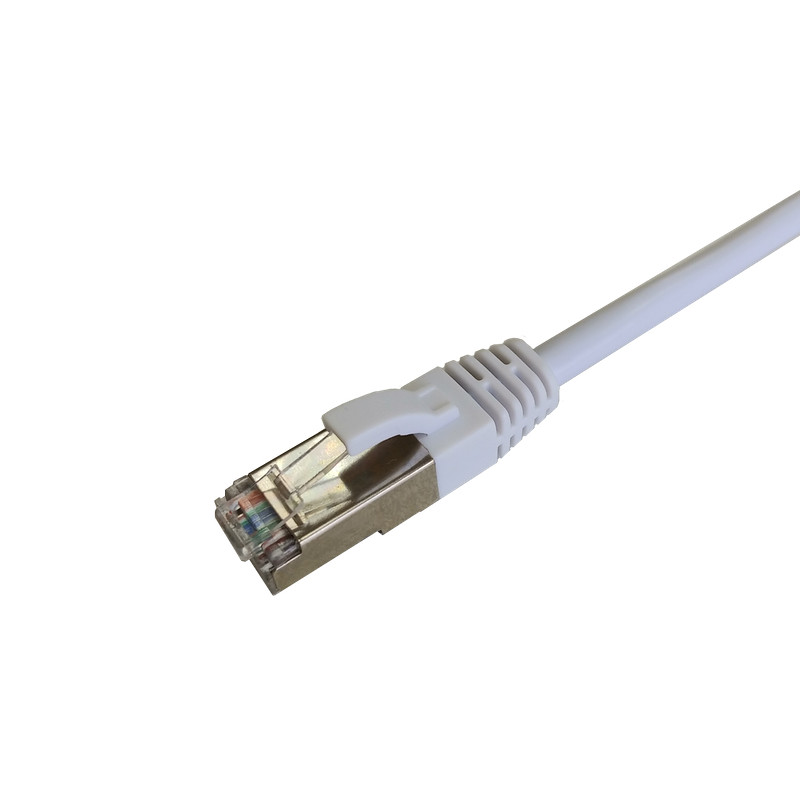

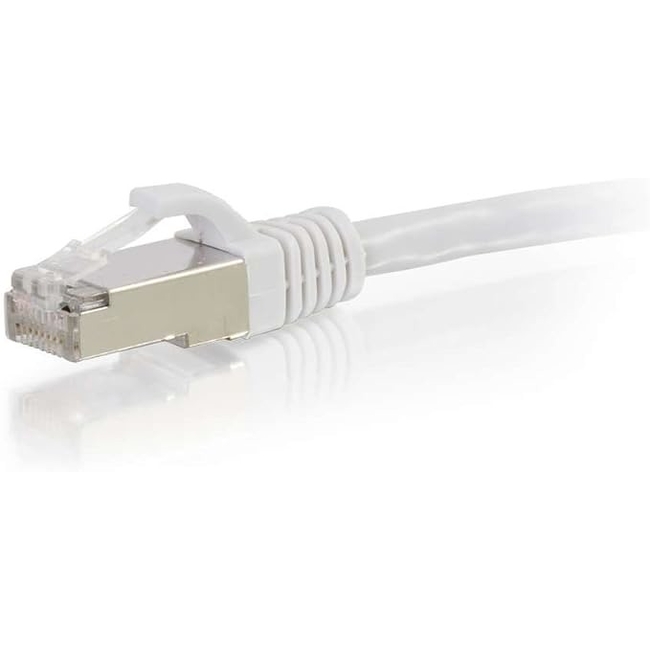

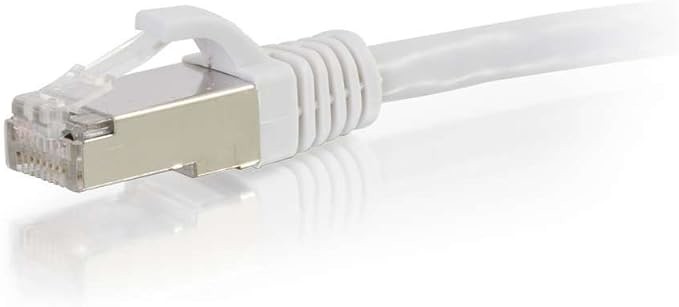

The Kαλώδιο Δικτύου RJ45 0.50m White Cat5e SF/UTP is a high-quality Ethernet patch cable designed for reliable performance in networking environments. With a length of 0.50 meters, it is crafted with a durable white PVC jacket that not only adds longevity but also makes it easy to identify.
This cable complies with Category 5e (Cat5e) standards, allowing data transmission speeds of up to 1 Gbps (1000 Mbps) and featuring a bandwidth of 100 MHz. Its specific characteristics include:
- SF/UTP shielding: Combines a foil shield and tinned copper braid for protection against electromagnetic interference (EMI).
- Conductors: Made of 24 AWG copper, usually twisted in pairs to minimize crosstalk.
- Connectors: Two male RJ45 connectors with gold plating for enhanced contact quality.
- Cable Design: Round and flexible for easy installation.
- Standards Compliance: Meets TIA/EIA wiring standards ensuring compatibility.
Additional technical specifications include a characteristic impedance of 100 Ω ± 15%, mutual capacitance of approximately 5.6 nF per 100 m, and a temperature range of -20° to +70°C. The cable’s robust construction signifies it can withstand a pulling force of approximately 9.5 kg and a minimum bend radius of 8 times the cable diameter.
This RJ45 cable is optimal for close proximity connections such as those between patch panels and switches, making it an excellent choice for both home and professional network setups.
Specifications
-
Length
- 0.50 meters
-
Cable type
- Cat5e SF/UTP
-
Data rate
- Up to 1 Gbps
-
Frequency
- 100 MHz
-
Conductors
- 24-27 AWG copper or copper-clad aluminum
-
Connector type
- RJ45 Male to RJ45 Male
-
Shielding
- Foil + tinned copper braid
-
Jacket material
- White PVC
-
Characteristic impedance
- 100 Ω ± 15%
-
Operating temperature range
- -20°C to +70°C
-
Bend radius
- ≥ 8 × cable diameter
-
Pulling force
- 9.5 kg
-
Standards compliance
- TIA/EIA-568-B / 568-C.2
