Detailed Description

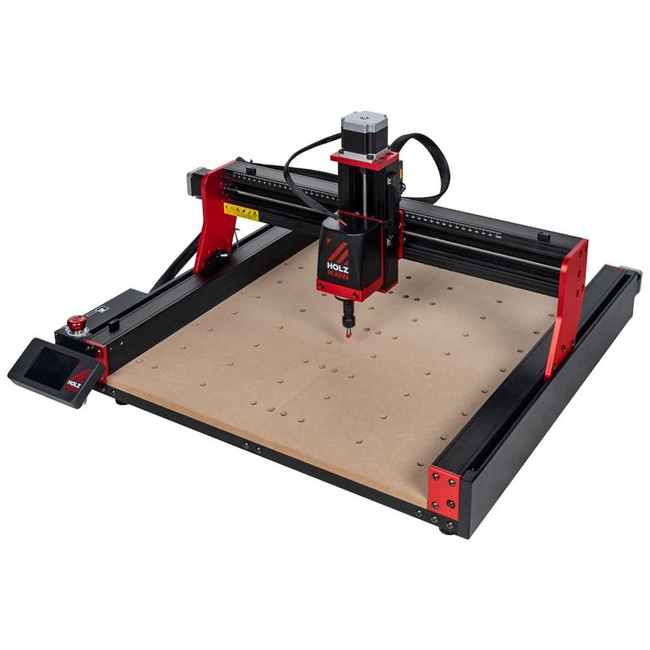

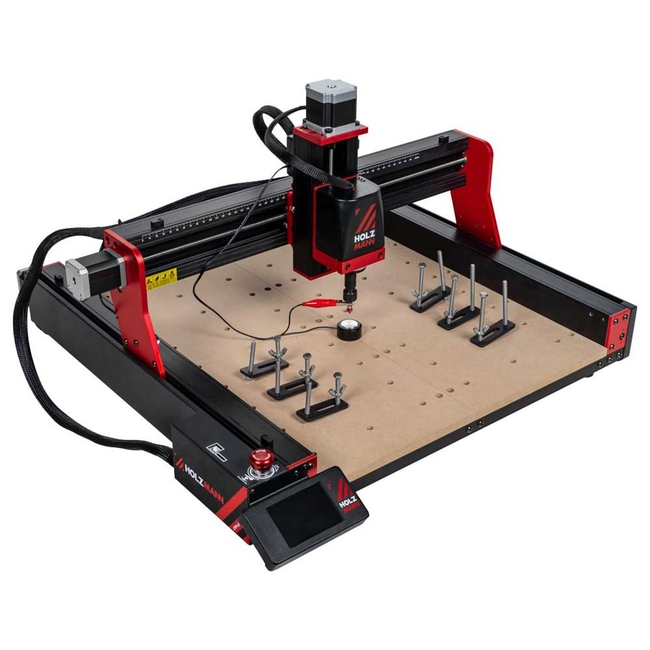

The Holzmann CTF45P_230V CNC Tischfr?se is a versatile and compact CNC table router designed for precision woodworking, plastic processing, and even aluminum working. This machine is characterized by its plug-in module design, which allows for quick and easy setup and completion.
Working Area and Dimensions:
- Working Area: The machine features a working area of 460 x 460 x 80 mm (L x W x H), providing ample space for various woodworking tasks.
- Total Dimensions: The total dimensions of the machine are 742 x 689 x 413 mm, ensuring it fits well in most workshop environments.
Technical Specifications:
- Power Supply: Operates on 230V power supply with a range of 100-240V and frequency of 50-60 Hz.
- Spindle Motor: Has a power of 80W and operates at a speed of 8000 min-1.
- Positioning Accuracy: The XY axes have a precision of 0.05 mm.
- Engraving Precision: Engraving precision is ±0.05 mm.
- Max. Feed Speed: The maximum feed speed is 800 mm/min.
- Max. Milling Cutter Diameter: Accommodates tools with a maximum diameter of 10 mm.
File Recognition Formats: The machine supports various file formats including NC, DXF, BMP, JPG, PNG, and GCODE, making it compatible with a wide range of CAD software.
Additional Features:
- Sound Levels: Operates at a sound power level of 105 dB(A).
- Optional Accessories: Offers versatile optional accessories enhancing its functionality.
The Holzmann CTF45P_230V CNC Tischfr?se is ideal for professionals and hobbyists, offering precision, efficiency, and ease of use.
Specifications
-
Power Supply
- 230V
-
Spindle Motor Power
- 80W
-
Spindle Speed
- 8000 min-1
-
XY Axes Positioning Accuracy
- 0.05 mm
-
Engraving Precision
- ±0.05 mm
-
Max Feed Speed
- 800 mm/min
-
Max Milling Cutter Diameter
- 10 mm
-
Sound Power Level
- 105 dB(A)
-
Sound Pressure Level
- 85 dB(A)
