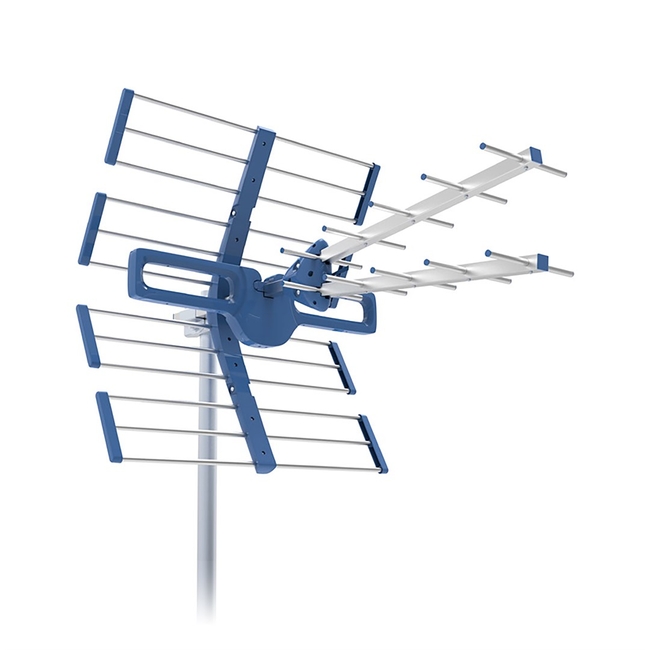

The DVB-T/T2 UHF TT-365 5G Protected Antenna is a highly efficient directional antenna designed specifically for receiving digital terrestrial television signals in the UHF band. Manufactured by Telmor, it is an integral part of the TT series aimed at providing top-notch reception of DVB-T and DVB-T2 signals.

Key Features

• Antenna Design and Frequency Range: The TT-365 5G Protected antenna operates within the frequency range of 470-694 MHz, allowing it to receive a wide variety of TV channels.
• Gain and Reception Angle: With a high gain of 9.5 to 13 dBi, the antenna ensures robust signal reception. The reception angle being less than 45 degrees is optimal for directional antennas.
• 5G Protected Technology: This feature filters out GSM, LTE, and 5G signals, significantly enhancing reception quality.
• Assembly and Mounting: The antenna allows for quick assembly in under 3 minutes without the need for tools.
• Weather Resistance: Built to withstand the elements, ensuring reliable outdoor performance.
• Compact Dimensions: Despite strong features, it has compact dimensions for easy installation in various settings.

Technical Specifications

• Impedance: 75 Ω
• Gain: 9.5 to 13 dBi
• Frequency Range: 470-694 MHz
• F/B Ratio: 20 dB
• Reception Angle: < 45 degrees
