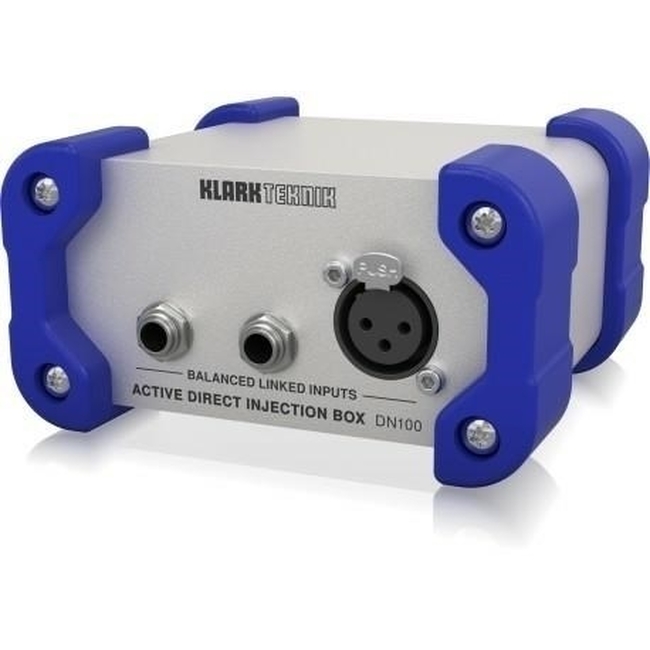

The Klark Teknik DN100 V2 is a 1-channel active direct injection (DI) box designed for professional audio applications. This unit is essential for sound professionals working live onstage or in the studio, particularly where +48V phantom power is a standard feature on all mixing consoles.

Key Features:

• High Clipping Point and Dynamic Range: The DN100 V2 boasts an innovative design that significantly increases the clipping point compared to traditional active DI boxes, providing a +10 dBu output into a 2 kilohms load. This results in an impressive dynamic range, ensuring that the unit can handle a wide range of audio signals without distortion.
• Advanced Input Circuitry: With a custom instrumentation-grade input circuit, the unit can handle passive guitar and bass pickups while maintaining a low noise floor.
• Illuminated Controls: The unit includes illuminated controls for the 30 dB pad, ground loop switches, and a +48V phantom power indicator LED for easy monitoring from a distance.
• Galvanic Isolation: Full galvanic isolation is achieved through the ground-lift switch, preventing ground loops for clean audio signals.

Technical Specifications:

• Dimensions: 119.4 mm (width) x 112.0 mm (depth) x 63.5 mm (height)
• Weight: 0.44 kg
• Power Source: +48V phantom power, operational with voltages as low as +20V
• Inputs and Outputs: Two 6.3 mm jack inputs and one 3-pole XLR input, with a single 3-pole XLR output
• Frequency Range: 20 Hz to 20 kHz
• Noise Floor: -100 dBu unweighted
• Distortion: Less than 0.01% THD+N at 1 kHz with a +4 dBu input level

In summary, the Klark Teknik DN100 V2 is a high-performance DI box designed for professionals, with advanced features that enhance its functionality in both live and studio environments.
